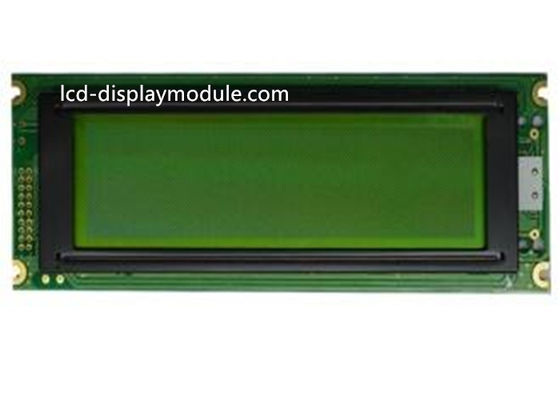

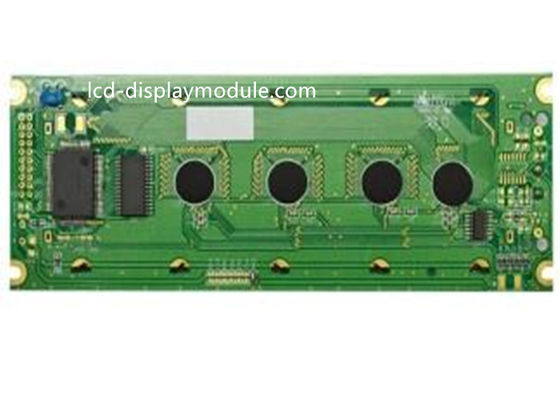

Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle

Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle

  • Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle
  • Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle
  • Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle
Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET24064B01
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: COB 240*64 Graphic LCD Module Duty: 1/64 Duty, 1/9 Bias
Backlight: Yellow Green Driver IC: T6963C/SDN8080G
Viewing Angle: 12 O'clock Viewing Area: 133.00mm * 39.00mm
Highlight:

graphic lcd display

,

serial graphic lcd

 LCD Module COB Resolution 240*64 Graphic LCD Module STN Yellow Green



Graphic LCD Module

Product Information

Display Type Graphic LCD Module COB Yellow Green
Display Resolution 240 * 64
Polarizer Type STN/Y-G /Tranflective/Positvie
Viewing Area (mm*mm)
133.00mm * 39.00mm
Outline Dimension (mm*mm) 180.00mm * 65.00mm * 17.50mm
Duty 1/64, 1/9 Bias
Controller IC T6963C/SDN8080G
Backlight Color LED Yellow Green
Interface 8080 8-Bit MPU Interface





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.







Outline Drawing


Yellow Green 240 x 64 Graphic LCD Module STN With 12 O ' clock Viewing Angle 0
