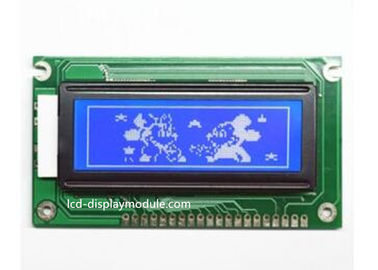

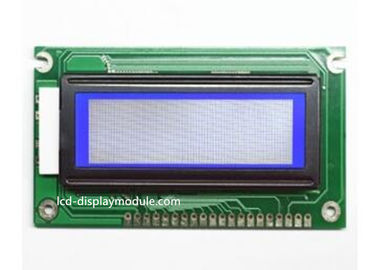

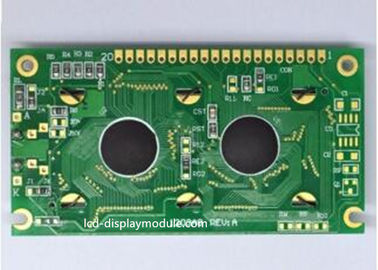

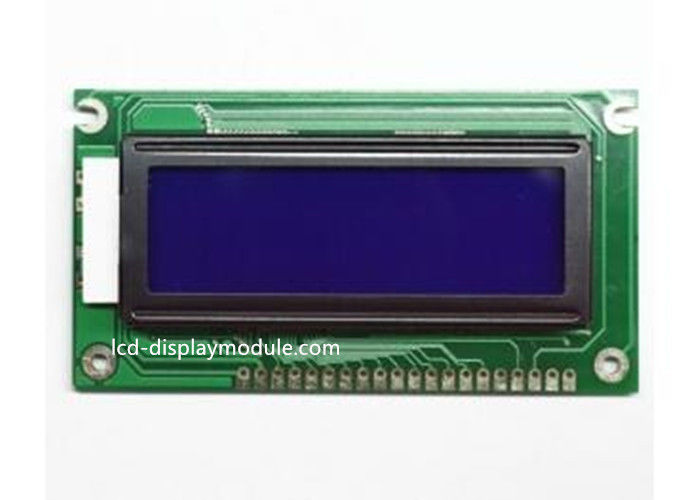

COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical

COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical

  • COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical
  • COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical
  • COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical
  • COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical
COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET12232B03
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: COG 122*32 Graphic LCD Screen Viewing Direction: 6 O'clock
Drive Method: 1/32 Duty 1/6 Bias Interface: 6800
Backlight: White Product Name: 122X32 Graphic LCD Module
Highlight:

graphic lcd display

,

serial graphic lcd

LCD Module COB Resolution 122X32 Graphic LCD Module With White Backlight



Graphic LCD Module

Product Information

Display Type Graphic LCD Module COB STN Blue
Display Resolution 122 * 32
Polarizer Type STN/ Blue Transimissive Negative
Viewing Area (mm*mm)
60.00mm * 18.00mm
Outline Dimension (mm*mm) 84.00mm * 44.00mm * 13.80mm
Duty 1/32Duty 1/6 Bias
Controller IC SBN1661G-M18
Interface 6800





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.







Outline Drawing


COB STN Blue Graphic LCD Module 122 x 32 With White Backlight For Medical 0


Tag:

lcd graphic display,

serial graphic lcd,

graphic lcd display
