Name: 7 Inch 800 * 1280 Resolution All Viewing Direction Capacitive Touch Screen High Brightness
Brand: Elite Tree Technology
SKU: ETN070CHJ009-A
Price: 2.20 USD
Availability: InStock

Home Products TFT LCD Display Module

7 Inch 800 * 1280 Resolution All Viewing Direction Capacitive Touch Screen High Brightness

Product Details:

Place of Origin:	China
Brand Name:	Elite Tree
Certification:	ISO9001:2015 / ISO14001/TS16949
Model Number:	ETN070CHJ009-A

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time:	5days for sample and 20-25 days for mass production
Payment Terms:	T/T, Western Union
Supply Ability:	100Kpcs~ per month

Contact Now

Detailed Product Description

Display Type:	7'' 800 * 1280 TFT Display	Viewing Direction:	All Viewing Direction
Operting Temperature:	-20~70C	Driver IC:	JD9365DA-H3
Brightness:	700 CD/m2	Active Area:	94.20 * 150.72 Mm
Outline Dimension:	117.12 * 161.00 * 4.20mm	Touch Panel:	Optional (CTP Or RTP)
CTP IC:	GT911	Surface Hardness:	>6H
Backlight:	20-chips LED;
Highlight:	7inch capacitive touch screen , 7inch capacitive touch screen 800x1280 , High Brightness 7 capacitive touch screen

7'' inch 800*1280 MIPI Interface TFT display with Optional Touch Screen

TFT LCD Display Module

Company Information

To take the purpose of 'quality first and customer first', Elite Tree Technology will show you the capability and advantages we have. How that we can carry on cooperation with our customers in strong and good business partner relationship! Let's grow and develop together, with win-win!

Product Information

Display Type	7'' TFT Display
Display format	800 * 1280 Resolution
Outline dimension	117.12 * 161.00 * 4.20mm
Active area	94.20 * 150.72 mm
IC package	COG
IC or equivalent	JD9365DA-H3
Interface	MIPI
Touch panel optional	Yes, Resistance or Capacitive Touch Screen
Viewing direction	All Direction
LED backlight color	White
Backlight current (typ)	20 Chip white LED
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
If accept customized	Yes
RoHS compliance	Yes

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

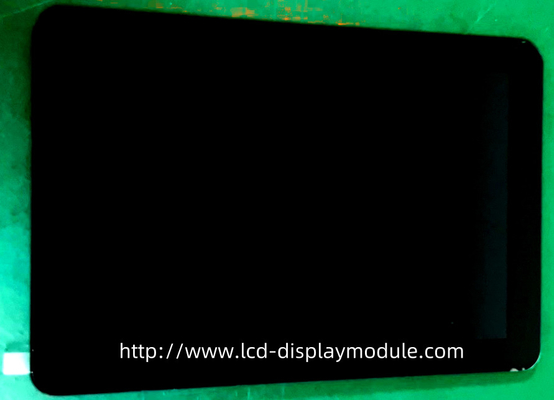

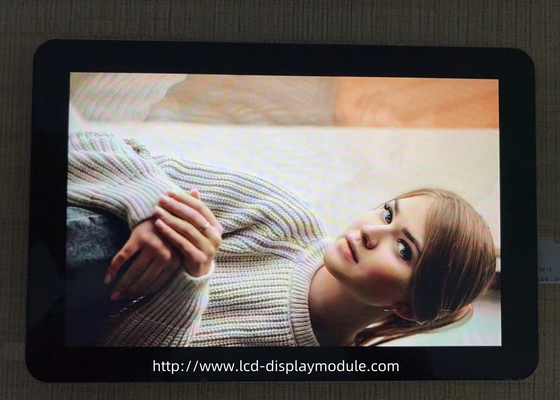

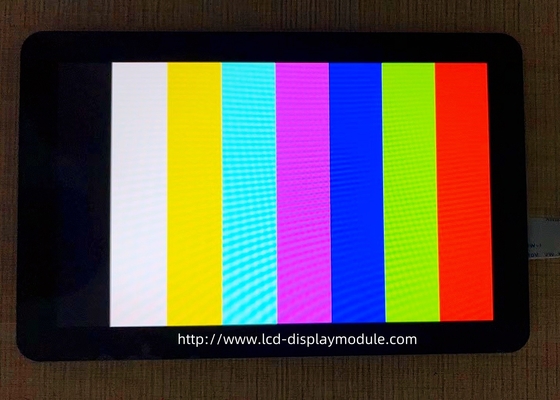

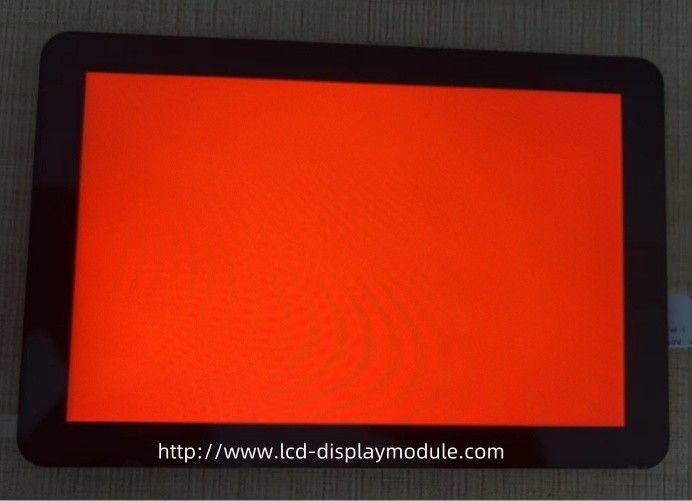

7 Inch 800 * 1280 Resolution All Viewing Direction Capacitive Touch Screen High Brightness 0

Product Drawing

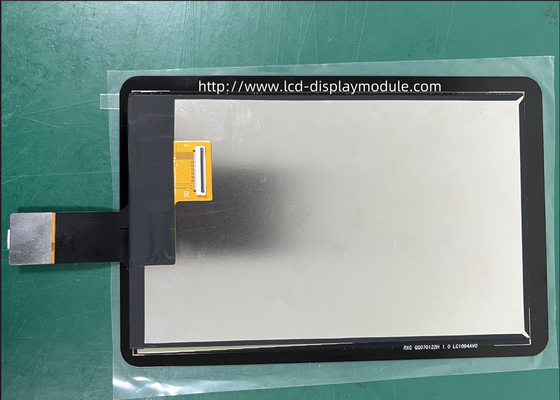

7 Inch 800 * 1280 Resolution All Viewing Direction Capacitive Touch Screen High Brightness 1
