1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting

1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting

  • 1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting
  • 1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting
  • 1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting
1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET144NP
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: TFT ,1.44'' 128*128 TFT Module LCD Display Viewing Direction: 6 O'clock
Operting Temperature: -20~70C Driver IC: ST7735S
Interface: RGB Parallel Backlight: 1pc LED White
Active Area: 25.5*26.5 Mm Outline Dimension: 30.6*34.8*2.5 Mm
High Light:

touch lcd module

,

touchscreen display module

1.44 inch 128*128 Resolution RGB LCD Display Module Optional Touch Screen



TFT LCD Display Module



Product Information



Display Type 1.44'' TFT screen
Display format 128*128 Dots
Outline dimension 30.6*34.8*2.5 mm
Visual area 27.7*32.4mm
Active area 25.5*26.5 mm
IC package
COG
IC or equivalent
ST7735S
Interface RGB Parallel
Touch panel optional Yes
Viewing direction 6:00
LED backlight color
White
Power supply(typ) 3.1V
Backlight current (typ) side, white Led(1PCS)
Operating temp
-20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.



Product Drawing



1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting 0

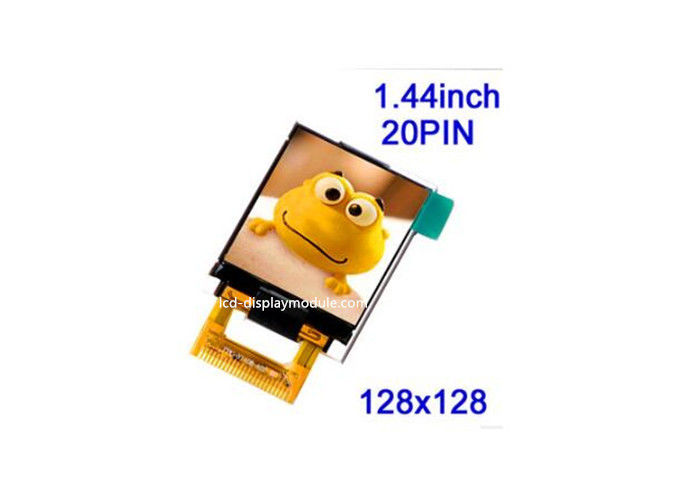

Product Photo



1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting 1
