| Place of Origin: | China |
| Brand Name: | Elite Tree |
| Certification: | ISO9001:2015 / ISO14001 |
| Model Number: | ET300NP |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
| Delivery Time: | 5days for sample and 20-25 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100Kpcs~ per month |
| Display Type: | TFT, 3.0'' 240*400 TFT Module LCD Display With Touch Screen | Viewing Direction: | 12 O'clock |
|---|---|---|---|
| Operting Voltage: | 3.3V | Operting Temperature: | -20~70C |
| Storage Temperature: | -30~80C | Driver IC: | ILI9327 |
| Active Area: | 38.88*64.80 Mm | Outline Dimension: | 45*77*3.95 Mm |
| Highlight: | touch lcd module,touchscreen display module |
||

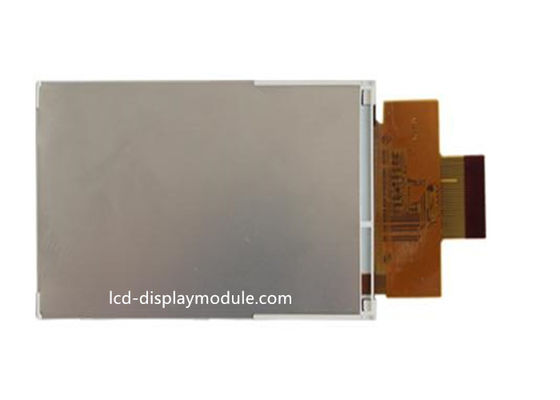

3.0 inch 240*400 Resolution SPI MCU TFT LCD Display Module Optional Touch Screen
TFT LCD Display Module
Company Information
Our products are widely used in the field of finance terminal,self-serviceterminal,consumer electronics,household appliance,medical device and industrial equipments etc.We can guarantee the high standards of quality,while providing customers with the most appropriate cost and effective solutions for their individual project requirements.
Product Information
| Display Type | 3.0'' TFT Module |
| Display format | 240*400 Dots |
| Outline dimension | 45*77*3.95 mm |
| Active area | 38.88*64.80 mm |
|
IC package
|
COG |
|
IC or equivalent
|
ILI9327 |
|
Interface
|
1/400Duty 1/20Bias |
| Interface | MCU |
| Touch panel optional | Yes |
| Viewing direction | 12:00 |
|
LED backlight color
|
White |
| Power supply(typ) | 3.3 V |
| Backlight current (typ) | side, white Led(6pcs) |
|
Operating temp
|
-20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Product Drawing
