Name: Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating
Brand: Elite Tree Technology
SKU: ET350NP06
Price: 2.20 USD
Availability: InStock

Home Products TFT LCD Screen

Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating

Product Details:

Place of Origin:	China
Brand Name:	Elite Tree
Certification:	ISO9001:2015 / ISO14001
Model Number:	ET350NP06

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time:	5days for sample and 20-25 days for mass production
Payment Terms:	T/T, Western Union
Supply Ability:	100Kpcs~ per month

Contact Now

Detailed Product Description

Display Type:

TFT LCD Screen 3.5 Inch 480 * 640

Viewing Direction:

9 O'clock

Driver IC:

HX8363A

Interface:

RGB18 Bit +SPI

Highlight:

tft touch screen

mobile lcd screen

TFT 3.5 Inch 480 * 640 Resolution TFT LCD Screen With RGB18 bit +SPI Interface↵

TFT LCD Screen

Product Information

Display Type	3.5 Inch TFT LCD Screen
Resolution	480 * 640
Outline Dimension	64.00mm * 85.00mm * 3.00mm
Active area	53.28mm * 71.04mm
Interface	RGB18 bit +SPI
Viewing Direction	9 O'clock
LED backlight color	White LED
Driver IC	HX8363A
Power supply(typ)	3.3V
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
Brightness	300cd/m2
If accept customized	Yes
RoHS compliance	Yes

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

Product Drawing

Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating 0

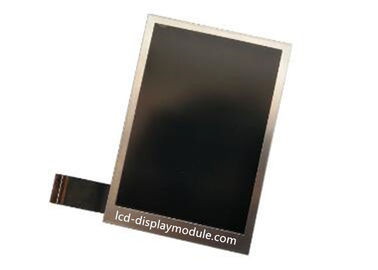

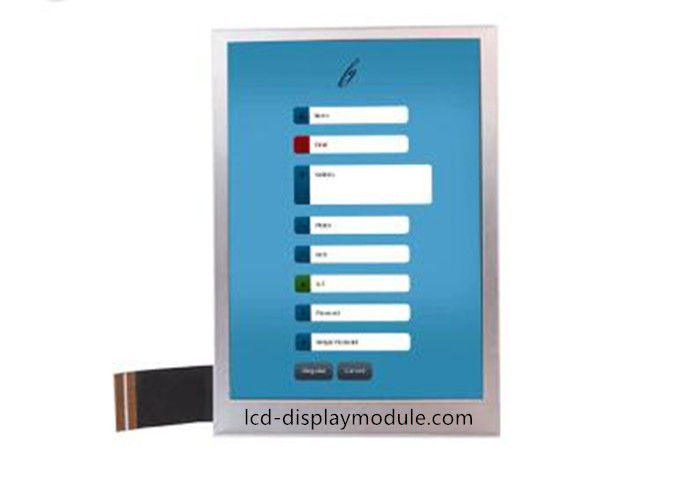

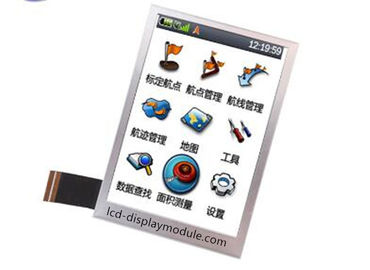

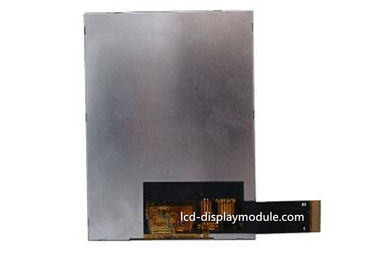

Product Photo

Direction 9 O'Clock TFT LCD Screen RGB18 Bit SPI Interface 3.3V Operating 1
