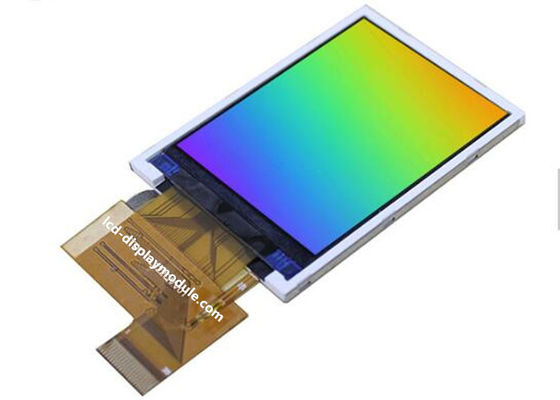

White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock

White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock

  • White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock
  • White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock
  • White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock
  • White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock
White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET220NP02
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: TFT LCD Screen 2.2'' 240*320 Viewing Direction: 12 O'clock
Driver IC: ST7789V Interface: RGB
Highlight:

customized tft lcd

,

tft touch screen

TFT 2.2'' QVGA 240* 320 TFT LCD Screen With RGB Interface 12 O‘clock​



TFT LCD Screen



Product Information



Display Type 2.2'' TFT LCD Screen
Resolution 240 * 320
Outline dimension 40.60mm * 56.60 * 2.70mm
Active area 33.84mm * 45.12 mm
Interface RGB
Touch panel optional Optional
Viewing direction 12 O'clock
LED backlight color
 White
Power supply(typ) 2.8V
Backlight current (typ) side, white Led
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.



Product Drawing (PIN Definition)



White Backlight TFT LCD Screen QVGA 240 x 320 With RGB Interface 12 O ' Clock 0​
