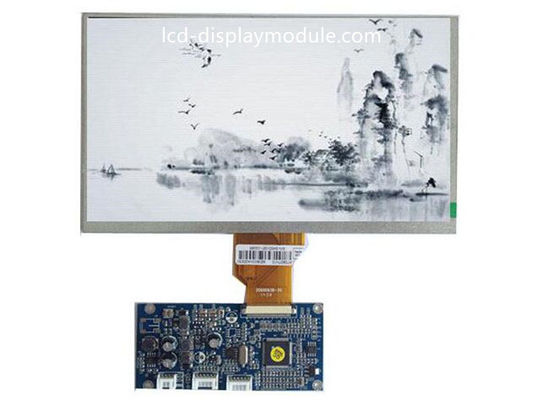

450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment

450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment

  • 450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment
  • 450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment
450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET900NP02
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: TFT LCD Screen 9 Inch 8000*RGB*480 Viewing Angle: 50/70/70/70
Ratio: 16 : 9 Brightness: 450cd/m2
Panel Model: AT090TN12V3
Highlight:

tft touch screen

,

mobile lcd screen

TFT 9 Inch 800 * 480 Resolution TFT LCD Screen With 450cd/m2 Brightness



TFT LCD Screen



Product Information



Display Type 9'' TFT LCD Screen
Resolution 800 * 480
Outline Dimension 211.00mm * 126.50mm * 5.90mm
Active area 198.00mm * 111.696mm
Interface Digital
Signal Input Interface 26 PINs
Viewing Angle 50/70/70/70
LED backlight color
 White
Power supply(typ) 3.3V
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
Brightness 450cd/m2
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.



Product Drawing

​

450cd / m2 Brightness TFT LCD Screen 9 Inch 800 * 480 For Health Equipment 0



Tag:

tft touch screen,

customized tft lcd,

mobile lcd screen
