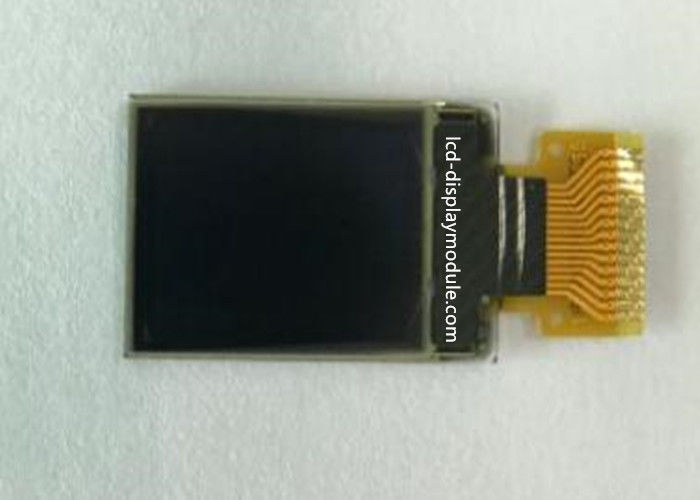

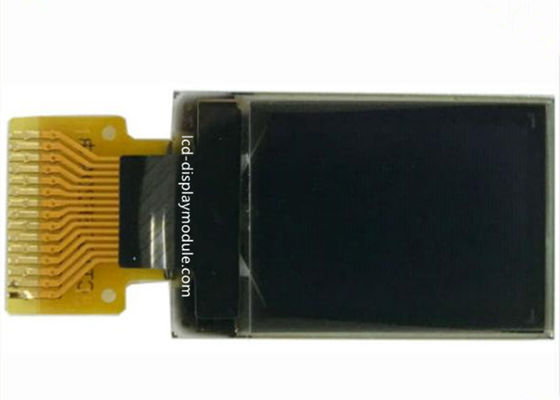

15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display

15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display

  • 15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display
  • 15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display
15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET071OL
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: OLED Display 0.71'' OLED Display Module Operting Voltage: 2.6 ~ 3.5V
Operting Temperature: -30~70C Storage Temperature: -40~80C
Driver IC: SSD1306 Color: Monochrome (White)
Highlight:

custom oled display

,

oled small screen

OLED Display 0.71'' OLED Display Module 48*64 Resolution With 15PINs 4-Wires SPI



OLED Display Module

Product Information

Display Type 0.71'' OLED Display Screen
Screen Size(inch) 0.71”
Display Resolution 48 * 64
Active Area (mm*mm) 10.54 mm * 14.7mm
Outline Dimension (mm*mm) 13.9mm * 22mm * 1.2mm
Duty 1/64
PIN 15
Brightness (nits)

100(Min) cd/m2
Interface 4-wire/SPI





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.





Outline Drawing


15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display 0
