Place of Origin: | China |
Brand Name: | Elite Tree |
Certification: | ISO9001:2015 / ISO14001 |
Model Number: | ET130NP |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
Delivery Time: | 5days for sample and 20-25 days for mass production |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100Kpcs~ per month |
Display Type: | TFT, 1.3'' 240*240TFT Module LCD Display With Touch Screen | Viewing Direction: | All Direction |
---|---|---|---|
Operting Voltage: | 2.8V | Operting Temperature: | -20~70C |
Driver IC: | ST7789V | Backlight: | 2pcs LED White |
Active Area: | 32.34*32.34 Mm | Outline Dimension: | 35.5*38.23*1.4 Mm |
Highlight: | touch lcd module,colour lcd display module |
Round IPS SPI TFT LCD Display Module 1.3 inch Optional Touch Screen 240 * 240
TFT LCD Display Module
Product Information
Display Type | 1.3'' TFT Module |
Display format | 240*240 Dots |
Outline dimension | 45*77*3.95 mm |
Active area | 35.5*38.23*1.4 mm |
IC package
|
COG |
IC or equivalent
|
ST7789V |
Interface | System Serial interface |
Touch panel optional | Yes |
Viewing direction | All direction |
LED backlight color
|
White |
Power supply(typ) | 2.8 V |
Backlight current (typ) | side, white Led(2pcs) |
Operating temp
|
-20ºc~70ºc |
Storage temperature | -30ºc~80ºc |
If accept customized | Yes |
RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers,
Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.
Product Drawing

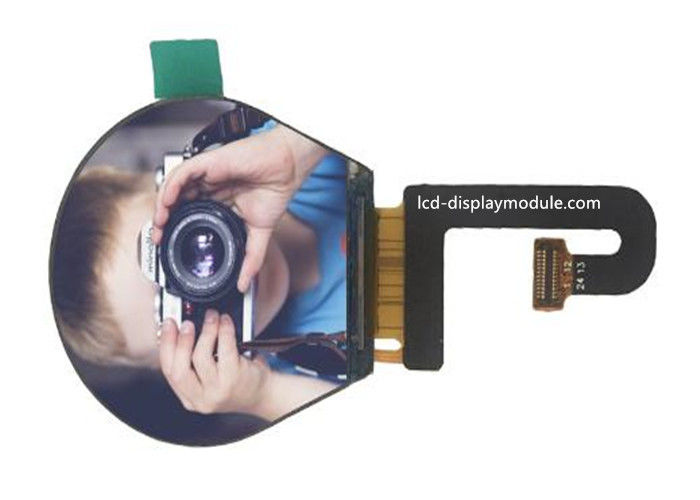

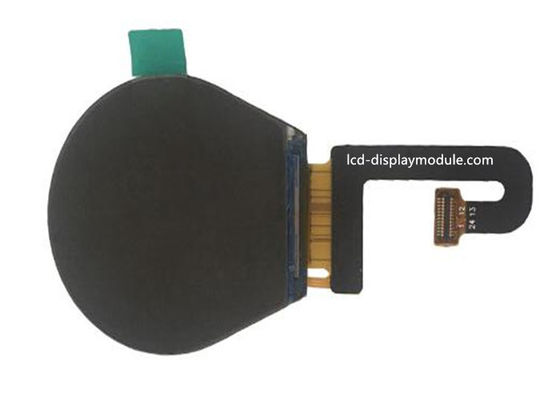

Product Photo
