| Place of Origin: | China |
| Brand Name: | Elite Tree |
| Certification: | ISO9001:2015 / ISO14001 |
| Model Number: | ET144NP |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
| Delivery Time: | 5days for sample and 20-25 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100Kpcs~ per month |
| Display Type: | TFT ,1.44'' 128*128 TFT Module LCD Display | Viewing Direction: | 6 O'clock |
|---|---|---|---|
| Operting Temperature: | -20~70C | Driver IC: | ST7735S |
| Interface: | RGB Parallel | Backlight: | 1pc LED White |
| Active Area: | 25.5*26.5 Mm | Outline Dimension: | 30.6*34.8*2.5 Mm |
| Highlight: | touch lcd module,touchscreen display module |
||
1.44 inch 128*128 Resolution RGB LCD Display Module Optional Touch Screen
TFT LCD Display Module
Product Information
| Display Type | 1.44'' TFT screen |
| Display format | 128*128 Dots |
| Outline dimension | 30.6*34.8*2.5 mm |
| Visual area | 27.7*32.4mm |
| Active area | 25.5*26.5 mm |
|
IC package
|
COG |
|
IC or equivalent
|
ST7735S |
| Interface | RGB Parallel |
| Touch panel optional | Yes |
| Viewing direction | 6:00 |
|
LED backlight color
|
White |
| Power supply(typ) | 3.1V |
| Backlight current (typ) | side, white Led(1PCS) |
|
Operating temp
|
-20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers,
Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.
Product Drawing

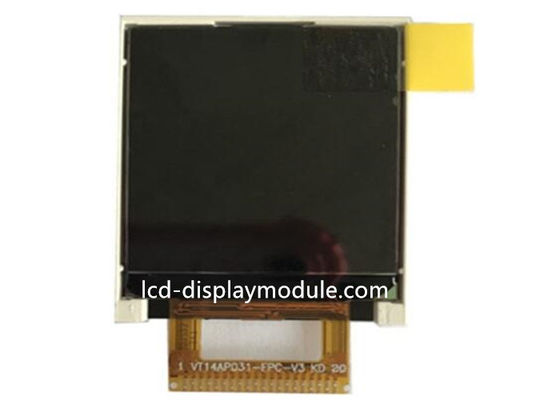

Product Photo
