| Place of Origin: | China |
| Brand Name: | Elite Tree |
| Certification: | ISO9001:2015 / ISO14001/TS16949 |
| Model Number: | ETPY43SN17-04 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
| Delivery Time: | 5days for sample and 20-25 days for mass production |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100Kpcs~ per month |
| Display Type: | 4.3'' 480 * 272 TFT Display | Viewing Direction: | All Viewing Direction |
|---|---|---|---|
| Operting Temperature: | -20~70C | Driver IC: | ST7283 |
| Backlight: | 7 Chip-White LED | Active Area: | 95.04 * 53.86 Mm |
| Outline Dimension: | 105.40 * 67.10 * 2.90mm | Touch Panel: | Optional (CTP Or RTP) |
| Brightness: | 300cd Type |

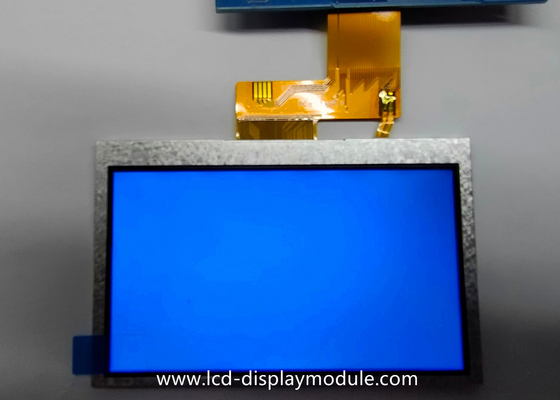

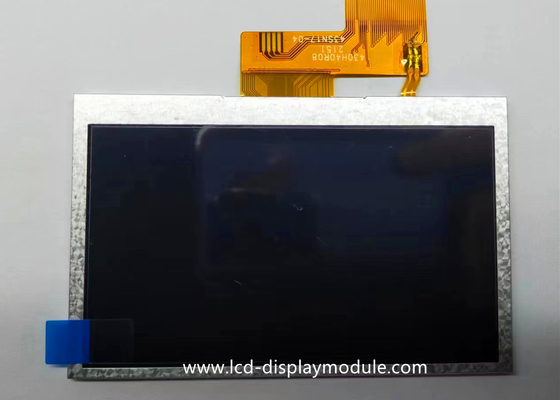

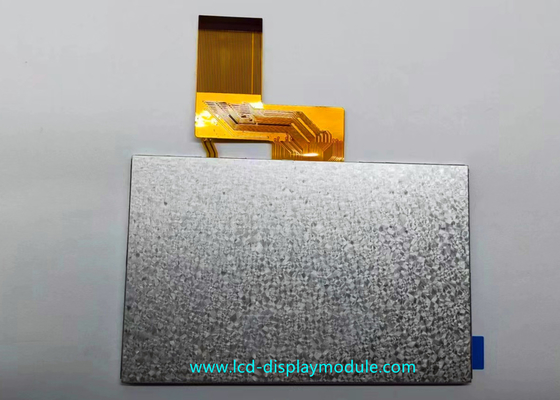

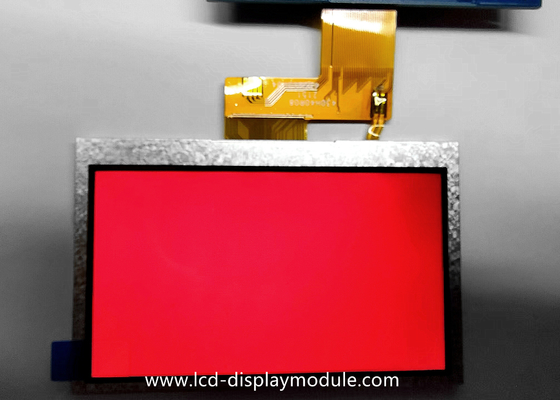

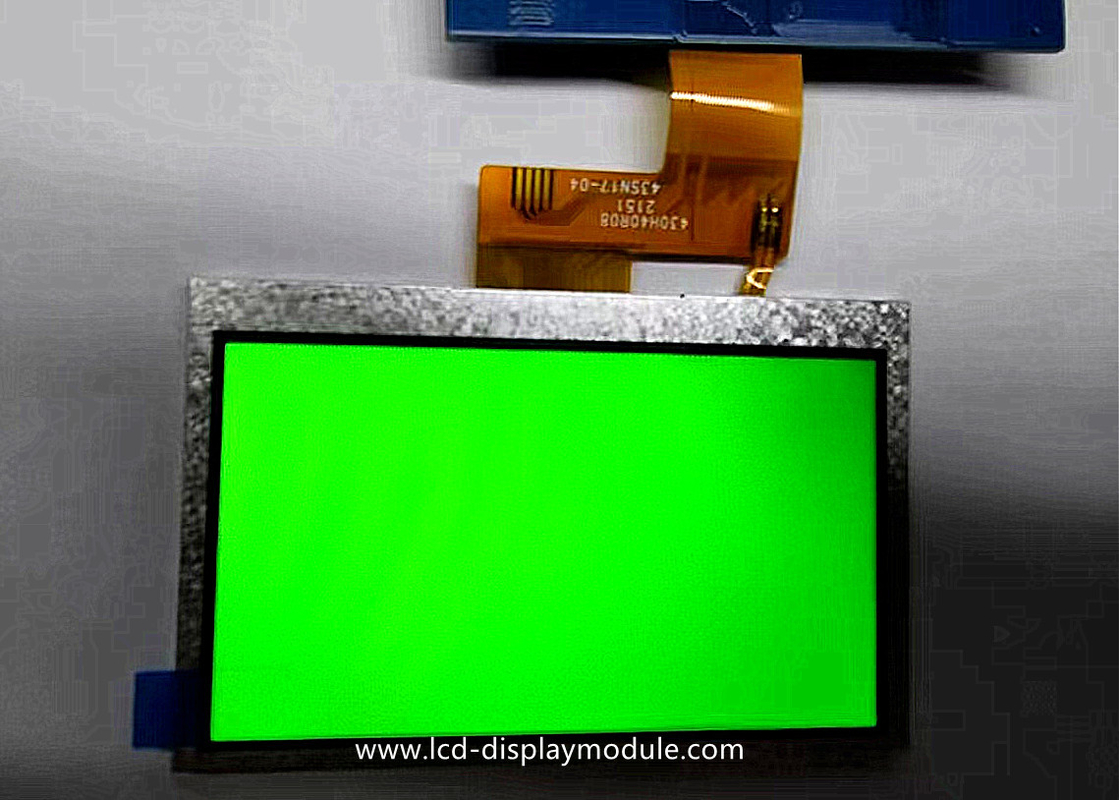

4.3'' inch 480*272 RGB+SPI interface TFT display with Optional Touch Screen
TFT LCD Display Module
Company Information
To take the purpose of 'quality first and customer first', Elite Tree Technology will show you the capability and advantages we have. How that we can carry on cooperation with our customers in strong and good business partner relationship! Let's grow and develop together, with win-win!
Product Information
| Display Type | 4.3'' TFT Display |
| Display format | 480 * 272 Resolution |
| Outline dimension | 105.40 * 67.10 * 2.90mm |
| Active area | 95.04 * 53.86 mm |
|
IC package
|
COG |
|
IC or equivalent
|
ST7283 |
|
Interface
|
SPI + RGB |
| Touch panel optional | Yes, Resistance or Capacitive Touch Screen |
| Viewing direction | All Direction |
|
LED backlight color
|
White |
| Backlight current (typ) | 7 Chip white LED |
|
Operating temp
|
-20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers,
Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.
Product Drawing
