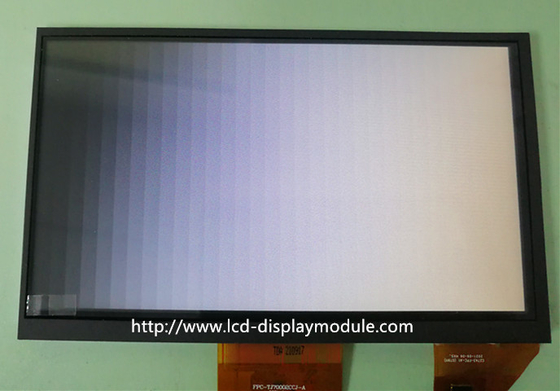

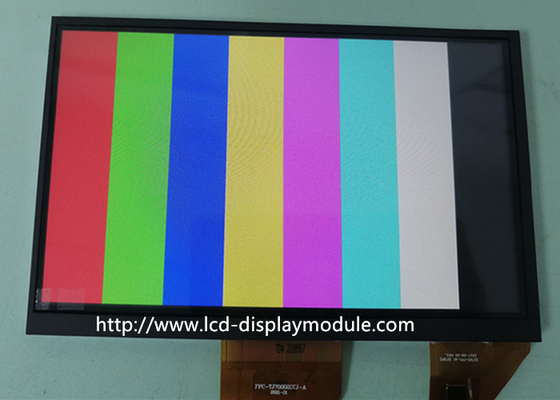

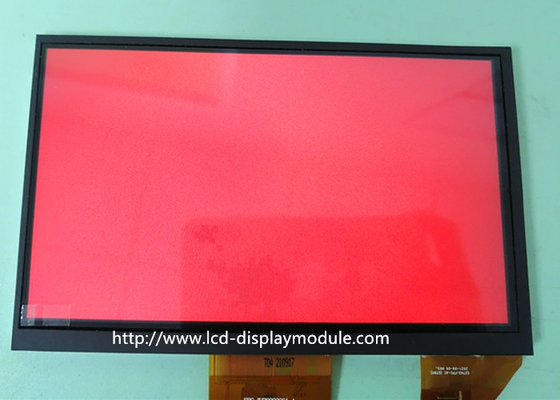

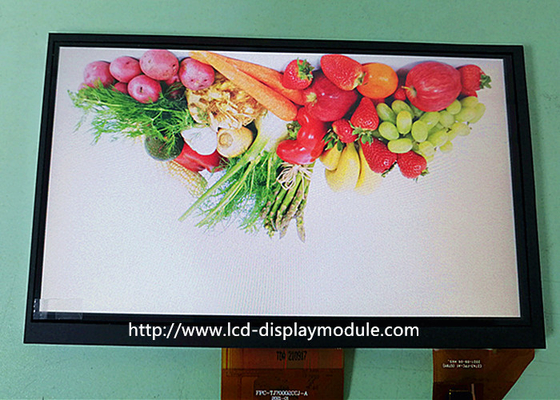

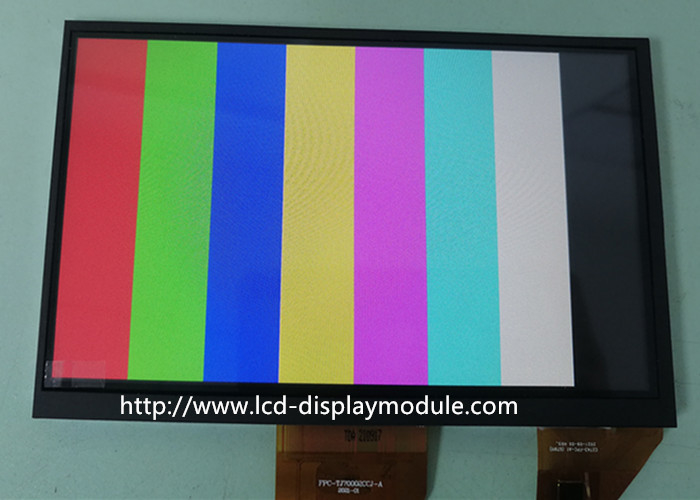

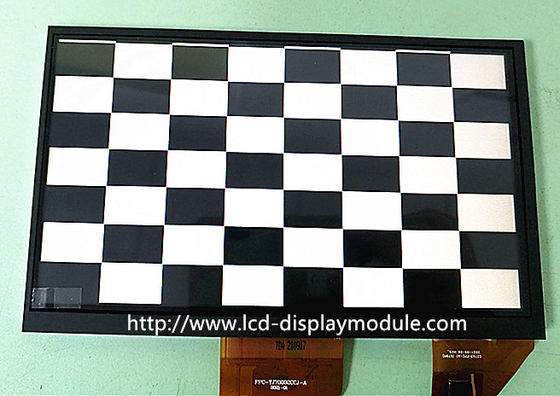

TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen For Auto

TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen For Auto

  • TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
  • TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
  • TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
  • TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
  • TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: TJ70002CCJ
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: TFT LCD Screen 7 Inch 800 X 480 Viewing Direction: 12 O'clock
Driver IC: ILI6122 & ILI5960 Interface: RGB
Touch: Capacitive Touch Screen (Optional) Brightness: 400cd/m2
Cover Glass: AG/AR/AF Working Temp: -30C ~ +85C
Storage Temp.: -30C ~ +85C Touch Controller: GT911

TFT 7 Inch 800 * 480 Resolution TFT LCD Screen With RGB Interface With CTP (Optional)



TFT LCD Screen



Product Information



Display Type 7 Inch TFT LCD Screen
Resolution 800 * 480
Outline Dimension 164.90mm * 100.00mm * 7.90mm
Active area 154.08mm * 85.92mm
Interface RGB
Viewing Direction 12 O'clock
LED backlight color
White LED
Driver IC ILI6122 & ILI5960
Touch Panel With Capactive Touch Panel (Optional)
Power supply(typ) 3.3V
Operating temp
-30ºc~85ºc
Storage temperature -30ºc~85ºc
Brightness 400cd/m2
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Automobile, Business related facility, Education electronics, etc.



Product Drawing

TFT Display Screen 7'' Inch 800 * 480 RGB888 12 O'clock Interface with Capacitive Touch Screen  For Auto 0
