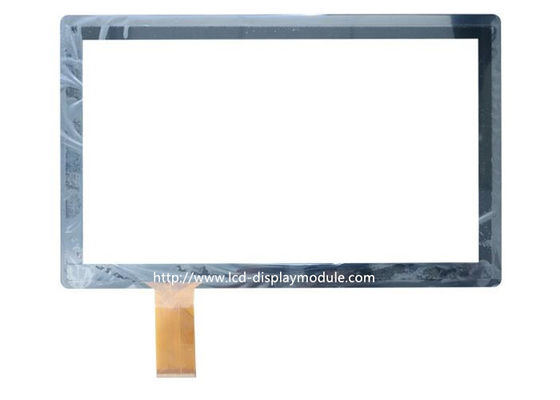

Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface

Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface

  • Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface
  • Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface
  • Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface
  • Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface
Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET0156CP01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T
Supply Ability: 300Kpcs~ per month
Contact Now
Detailed Product Description
Product Name: Capacitive Touch Screen Relative LCD Resolution: 1920:1080 FHD
TP Structure: G+G With Multi Touch Controller IC: ILI2511
Size: 15.6'' (16: 9) Interface: USB/RS232/IIC
High Light:

ILI2511 Capacitive Touch Screen Panel

,

Widescreen Capacitive Touch Screen Panel

,

RS232 Interface LCD Touch Screen

Customized 15.6 Inch LCD Touch Screen for Commercial Devices like POS terminals, ATM, Kiosks and etc.



Product Description:



Size: 15.6 Inch Capactive Touch Screen
Outline Dimension(mm) 387.10mm * 240.10mm *3.90mm
Viewing Area(mm): 346.20mm * 195.60mm
Surface Hardness >=3H( Pencil)
CTP Structure G + G
Controller IC ILI2511
Light Transmission: >85%
Relative LCD resolution 1920:1080
Opration Temperature: -20ºC- +70ºC
Storage Temperature: -30ºC- +80ºC
Touch Point 10 Point
Interface: USB/RS232/IIC
Converter Controller for option: HDMI, VGA
Operation System Windows, Android, Linux and Mac operating systems
Customized Customized Accepted







LCD Touch Screen



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



Application



Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface 0







Outline Drawing



Widescreen 15.6 Inch Capacitive Touch Screen Panel With RS232 Interface 1
