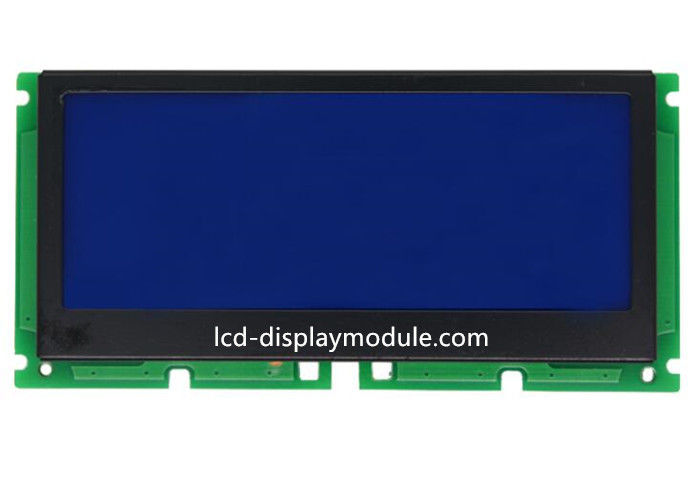

COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen

COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen

  • COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen
  • COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen
COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET19264B03
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T
Supply Ability: 300Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: COB LCD Display Screen Polarizer Type: Transmissive Negative
Controller IC: IST3020 Connector: COB
Highlight:

small display screen

,

fstn lcd module

Customized 192 * 64 Resolution Graphic Mono LCD Display Screen COB With White Backlight



LCD Display Screen

Product Information

Display Type COB LCD Display Screen
Polarizer Type Transmissive Negative
Resolution 192 * 64
Viewing Area (mm*mm)
84.00mm * 32.00mm
Outline Dimension (mm*mm) 100.00mm * 48.00mm * 11.50mm
Driving Voltage 3.30V
Driver IC IST3020
Viewing Angle 12 O'clock
Interface Serial Interface
Connector PCB
Backlight Side LED White
Customized Customized accepted





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.







Outline Drawing


COB White Backlight Small LCD Screen , 192 * 64 Custom Size LCD Screen 0
