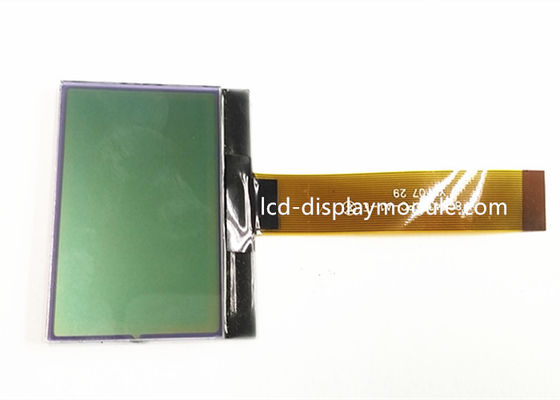

STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household

STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household

  • STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household
  • STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household
  • STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household
STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET12864-4G
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: 128X64 COG STN GRAY Positive Reflective Viewing Direction: 6 O'clock
Drive Method: 1/65 Duty, 1/9 Bias Operting Voltage: 3.0V
Backlight: LED White Driver IC: SPLC501C
High Light:

chip on glass lcd display

,

cog type lcd

COG 128*64 Resolution 3.0V STN Reflective Positive COG LCD Module With Backlight



COG LCD Module



​Company Information

We are professional manufacturer for LCD Panel, LCD Module display (COG, COG, SMT, TAB, Heat Seal etc) TFT Display Screen, Touch Panel Screen, Backlight LED for many years.

COG LCD Display Screen as reference

STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household 0





Product Information



Display Type COG LCD Module STN Positive Reflective Gray
Display format 128*64 Dots
Outline dimension 54 * 42 * 2.8 mm
Active area
50 * 31.5 mm
IC package
COG
IC or equivalent
SPLC501C
Interface
1/65 Duty, 1/9 Bias
Viewing direction 6:00
LED backlight color
White
Power supply(typ) 3.3 V
Backlight current (typ) side, white Led(2pcs)
Operating temp
-20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household 1





​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.



Product Drawing



STN Reflective Positive COG LCD Module 3.0V For Telecommunication Household 2
