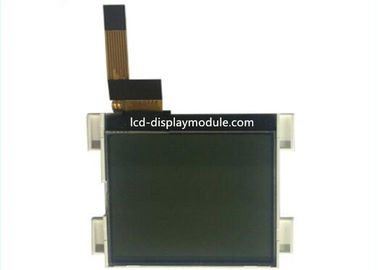

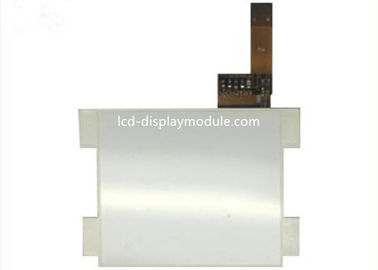

Name: Yellow Green 132 x 64 COG LCD Module Monochrome Graphic Customized Backlight
Brand: Elite Tree Technology
SKU: ET13264-1G
Price: 2.20 USD
Availability: InStock

Home Products COG LCD Module

Yellow Green 132 x 64 COG LCD Module Monochrome Graphic Customized Backlight

Product Details:

Place of Origin:	China
Brand Name:	Elite Tree
Certification:	ISO9001:2015 / ISO14001
Model Number:	ET13264-1G

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time:	5days for sample and 20-25 days for mass production
Payment Terms:	T/T, Western Union
Supply Ability:	100Kpcs~ per month

Contact Now

Detailed Product Description

Display Type:	132X64 COG Positive FPC Connector	Viewing Direction:	6 O'clock
Drive Method:	1/4 Duty, 1/3 Bias	Operting Voltage:	3.3V
Operting Temperature:	-20~70C	Storage Temperature:	-30~80C
Backlight:	Blue /Yellow Green /Gray/White	Driver IC:	ST7033
Highlight:	chip on glass lcd display , cog type lcd

COG 132*64 Resolution Monochrome Graphic Customized COG LCD Module With Backlight

COG LCD Module

Product Information

Display Type	COG LCD Module STN FSTN FFSTN
Display format	132*64 Dots
Outline dimension	45.00 * 39.00 * 3.20 mm
Active area	30.11*36.00 mm
IC package	COG
IC or equivalent	ST7033
Interface	1/4Duty 1/3Bias
Interface	Parallel
Viewing direction	6:00
LED backlight color	White Blue Yellow-Green Gray
Power supply(typ)	3.3 V
Backlight current (typ)	side, white Led(6pcs)
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
If accept customized	Yes
RoHS compliance	Yes

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

Product Drawing

Yellow Green 132 x 64 COG LCD Module Monochrome Graphic Customized Backlight 0
