Home ProductsTFT LCD Display Module

10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board

Certification
Good quality COG LCD Module for sales
Good quality COG LCD Module for sales
Quick response and great support which I like it very much. Strong R&D team to 1st time pass for customized display, Good quality!

—— Daniel weree

Have been business relationship for 3 years, great partner for LCD display.

—— Marcos Vetta

On-time delivery. And support is good and fast.

—— Carolina Fasio

I'm Online Chat Now

10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board

China 10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board supplier
10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board supplier 10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board supplier 10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board supplier

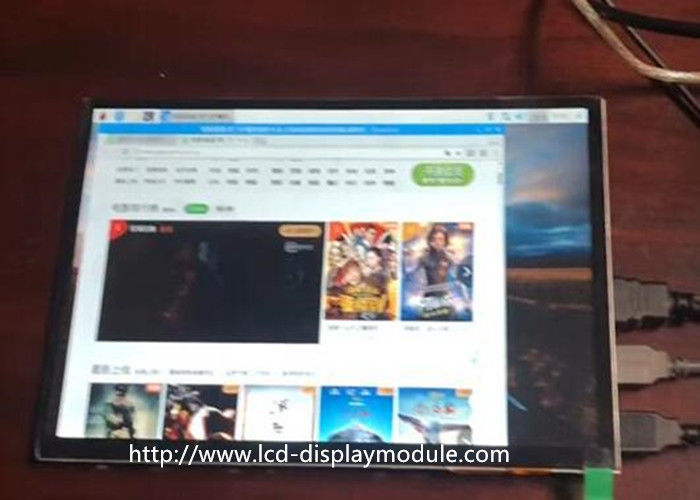

Large Image :  10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board

Product Details:

Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET100CP15

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T, Western Union
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: TFT , 10.1'' 1280*800 LCD Module Viewing Direction: Full Viewing Angle
Operting Voltage: 3.3V Operting Temperature: -20~70C
Brightness: 260cd/m2 (Type) Interface: 8-Bit 8080 (MCU) Interface
Backlight: 39pcs LED White Active Area: 216.96 (H)* 135.60(W)

10.1 inch 1280*800 0 TFT LCD Display Module With Capactive Touch Screen



TFT LCD Display Module



Product Information



Display Type 10.1''
Display format 1280 (RGB) * 800
Outline dimension 229.46*149.1*4.20mm
Active area 216.96 (H)* 135.60(W)
IC package
COG
Interface
Based on customer requirement
Display type TFT
Touch panel optional Capactive Touch Screen
Viewing direction Full viewing direction
LED backlight color
White
Power supply(typ) 3.3V
Backlight current (typ) side, white Led(39PCS)
Operating temp
-20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes









Product Drawing



10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board

10.1 Inch 1280 * 800 TFT LCD Module, With Touch Screen, All direction, Adapter Board







Company information



Elite Tree Technology founded in 2013, is engaged in the designing, producing, marketing and selling of various types of small to medium sized liquid crystal displays(LCD) and liquid crystal display modules (LCM), TFT Display, Backlight LED, Resistance and Capacitive Touch Screen.





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.
