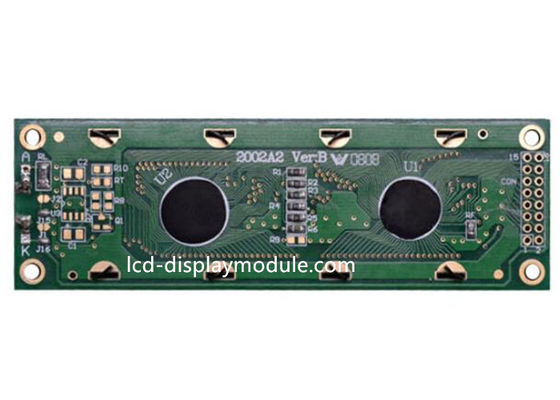

Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character

Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character
Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character

Large Image :  Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character Get Best Price

Product Details:

Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET2002B02

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T
Supply Ability: 100Kpcs~ per month
Detailed Product Description
Display Type: COB 20*2 STN LCD Display Screen Controller IC: ST7066U-0A(English - Japanese)
Drive Method: 1/16 Duty, 1/5 Bias Interface: 8 Bit Or 4Bit MPU
Backlight: LED Yellow –Green(side)
High Light:

dot matrix display module

,

dot matrix lcd display

COB Resolution 20*2 Character Dot Matrix LCD Display Module STN Yellow Green



Dot Matrix LCD Display Module

Product Information

Display Type Dot Matrix LCD Display Screen STN Yellow Green
Display Resolution 20 * 2
Polarizer Type STN/Yellow-Green/Transflective/Positive
Viewing Area (mm*mm)
85.00mm * 18.60mm
Outline Dimension (mm*mm) 116.00mm * 37.00mm * 9.50mm
Driving Method 1/16 Duty 1/5Bias
Controller IC ST7066U-0A(English - Japanese)
Interface 8 Bit or 4Bit MPU





Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours



Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.







Outline Drawing


Viewing 85.00 * 18.60mm Dot Matrix LCD Display Module COB Resolution 20 x 2 Character 0
