PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment

PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment

  • PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment
  • PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment
  • PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment
  • PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment
PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment
Product Details:
Place of Origin: China
Brand Name: Elite Tree
Certification: ISO9001:2015 / ISO14001
Model Number: ET0404-1B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: In anti-statics bag packed in carton or according to the customer's requirement
Delivery Time: 5days for sample and 20-25 days for mass production
Payment Terms: T/T
Supply Ability: 100Kpcs~ per month
Contact Now
Detailed Product Description
Display Type: COB FSTN LCD Modulee Graphic Viewing Direction: 6 O'clock
Drive Method: 1/16 Duty 1/5 Bias Operting Voltage: 4.5V
Connection: PIN Polarizer Mode: Transflective Positive
High Light:

small lcd module

,

stn lcd module

LCD Module COB FSTN LCD Display Modules Transflective Positive PIN Connection



LCD Display Module



Product Information



Display Type COB FSTN Positive Transflective Display
Outline dimension 92 * 92 * 6.7 mm
Active area
65 * 61.2 mm
IC package
COB + PIN
Interface
1/16 Duty, 1/5 Bias
LED backlight color
Side, Blue Led(12pcs)
Power supply(typ) 4.5 V
Operating temp
-20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes



Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours





​Application



Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

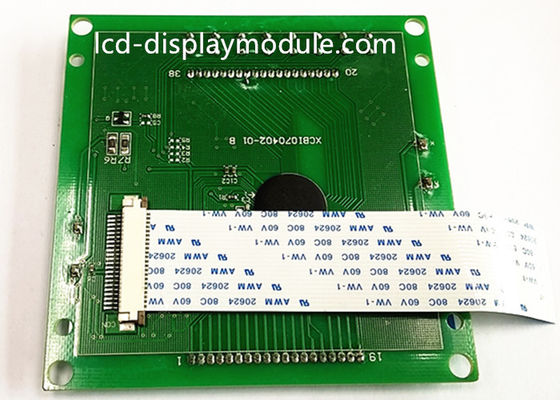

Product Drawing



PIN Connection FSTN LCD Display Module COB 4.5V Operating For Health Equipment 0
